each-user-gets-their-instance architecture
A
Aneesh Seth

a curious engineer.

Applications like Replit, or this side project I built https://breadkv.aneesh.wiki allow you to create your own instance of X, where X could be your own database, your own code editor, or whatever else. Essentially, they allow you to create your own instance, which is isolated from all other users on the app. This write-up is meant to talk about such architectures, and how they’re built using modern container orchestration tools like Kubernetes.

Core Concepts of the Architecture

Now that we know we want a new instance created for each user, each user request dynamically triggers the creation of a new instance, which leads to a couple of questions: where can this instance lie? Once we have the instance created somewhere, I also need to route my requests to this instance. For example, if I run X user’s DB instance, and then run a DB query, I would need to send the query to their DB instance specificially, how does that request route?

The Conceptual Reveal

Since we’re looking to run an instance, we effectively just need to run it on a machine. What is that machine? Since we’ve established that we would be using Kubernetes, that machine can essentially be a Kubernetes pod. Why not an EC2 Instance, or something else is something we’ll get to. With step one complete: an instance running in a pod, we move on to routing. When a user makes a request, the system needs to ensure it reaches the correct pod. This is handled using Kubernetes Services and Ingress Controllers. Each pod is paired with a ClusterIP service for internal routing. A service in Kubernetes will give access to the pod running, and this would help us with internal routing. But now that next question, how do we get to the right service if each instance (pod) has its own service?

This is where Ingress Controllers come in. Ingress controllers help with the routing of an incoming request, and has its own public facing IP. Ingress controllers can watch a set of ingresses, which based on routing rules have the ability to route to the correct service, and the service can route to the pod. Assuming our ingress controller’s public facing IP is mapped to a wildcard domain *.breadkv.com, essentially, if we’re able to hit the ingress controller and configure ingress rules to say that on receiving a request from breadkv.aneesh.com, route to the service named breadkv, and the service gets us to the pod, we’ve now solved our problem then.

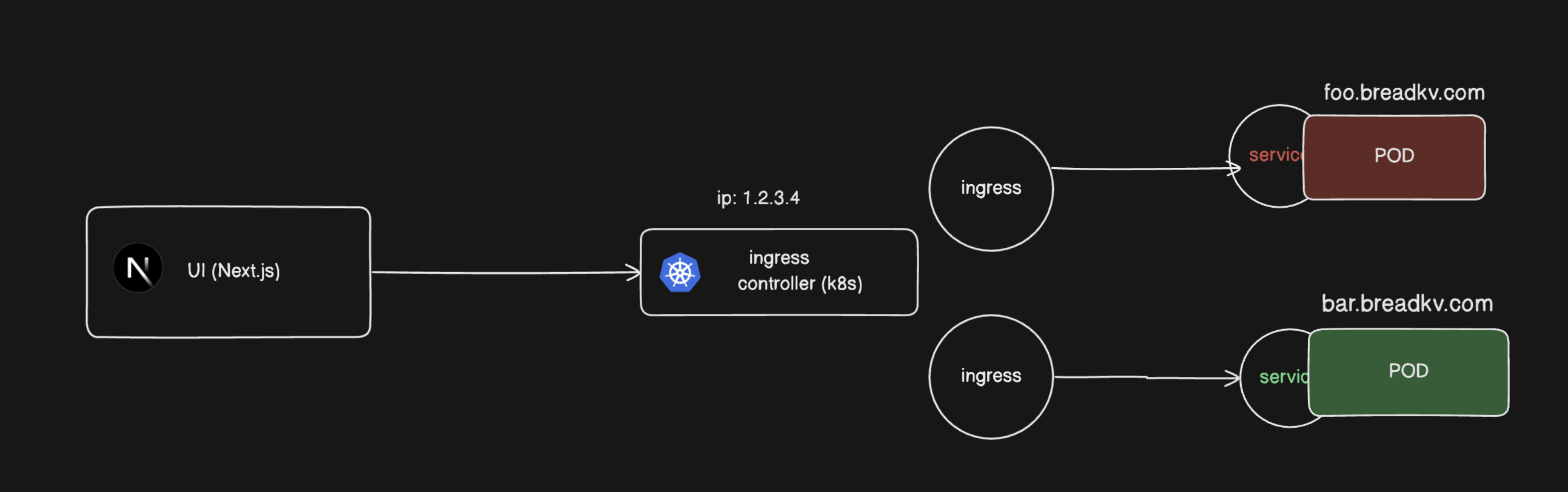

The diagram below, and code will make this clearer.

Steps to reproduce in Kubernetes – the YAML configurations

  1. This architecture first involves creating an ingress controller, and taking its public IP, and registering it with a domain (in our example, on *.breadkv.com so that any instance name can request accessing its pod) on Godaddy, Namecheap, or one of the similar providers.

  2. Whenever a user then requests an instance, we create a ingress (which is being watched for by the ingress controller), a service (which gives access to the pod), and a pod (where the actual instance is running, the below config file suggests deployment, but we can create a pod too for a simple usecase).

Path-based routing with Ingress:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: instance_name
  annotations:
    nginx.ingress.kubernetes.io/ssl-redirect: "true" # Optional: Force redirect HTTP to HTTPS
spec:
  ingressClassName: nginx
  tls:
  - hosts:
    - instance_name.breadkv.com
    secretName: cert-stage-wildcard
  rules:
  - host: instance_name.breadkv.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: instance_name
            port:
              number: 3005

What this above configuration does that it creates an ingress being watched by the ingress controller, and any request that comes to instance_name.breadkv.com, where instance_name could be any wildcard instance name we’re trying to access, it would resolve to the IP we set for the ingress controller, and the ingress controller, which is watching all ingresses, would get this request to this ingress, which then routes it to the service named instance_name as seen in the config, which eventually gets it to the appropriate pod.

Below are also the YAML configs for the pod (deployment in this case, but can create a pod for simplicity as mentioned), service, and ingress controller.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: service_name
  labels:
    app: service_name
spec:
  replicas: 1
  selector:
    matchLabels:
      app: service_name
  template:
    metadata:
      labels:
        app: service_name
    spec:
      volumes:
      - name: workspace-volume
        emptyDir: {}
      containers:
      - name: runner
        image: aneeshseth/breadkv-runner-node
        ports:
        - containerPort: 3005
        volumeMounts:
        - name: workspace-volume
          mountPath: /workspace
        resources:
          requests:
            cpu: "100m"
            memory: "32Mi"
          limits:
            cpu: "200m"
            memory: "64Mi"
---
apiVersion: v1
kind: Service
metadata:
  name: service_name
spec:
  selector:
    app: service_name
  ports:
  - protocol: TCP
    name: redis
    port: 3005
    targetPort: 3005

Ingress Controller:

---
# Source: ingress-nginx/templates/controller-serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
automountServiceAccountToken: true
---
# Source: ingress-nginx/templates/controller-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
data:
  allow-snippet-annotations: "false"
  log-format-escape-json: "true"
  log-format-upstream: '{"time":"$time_iso8601","remote_addr":"$remote_addr","proxy_protocol_addr":"$proxy_protocol_addr","proxy_protocol_port":"$proxy_protocol_port","x_forward_for":"$proxy_add_x_forwarded_for","remote_user":"$remote_user","host":"$host","request_method":"$request_method","request_uri":"$request_uri","server_protocol":"$server_protocol","status":$status,"request_time":$request_time,"request_length":$request_length,"bytes_sent":$bytes_sent,"upstream_name":"$proxy_upstream_name","upstream_addr":"$upstream_addr","upstream_uri":"$uri","upstream_response_length":$upstream_response_length,"upstream_response_time":$upstream_response_time,"upstream_status":$upstream_status,"http_referrer":"$http_referer","http_user_agent":"$http_user_agent","http_cookie":"$http_cookie","http_device_id":"$http_x_device_id","http_customer_id":"$http_x_customer_id"}'
---
# Source: ingress-nginx/templates/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
      - namespaces
    verbs:
      - list
      - watch
  - apiGroups:
      - coordination.k8s.io
    resources:
      - leases
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - discovery.k8s.io
    resources:
      - endpointslices
    verbs:
      - list
      - watch
      - get
---
# Source: ingress-nginx/templates/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - configmaps
      - pods
      - secrets
      - endpoints
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  # Omit Ingress status permissions if `--update-status` is disabled.
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - coordination.k8s.io
    resources:
      - leases
    resourceNames:
      - ingress-nginx-leader
    verbs:
      - get
      - update
  - apiGroups:
      - coordination.k8s.io
    resources:
      - leases
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - discovery.k8s.io
    resources:
      - endpointslices
    verbs:
      - list
      - watch
      - get
---
# Source: ingress-nginx/templates/controller-rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/controller-service-webhook.yaml
apiVersion: v1
kind: Service
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  type: ClusterIP
  ports:
    - name: https-webhook
      port: 443
      targetPort: webhook
      appProtocol: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-service.yaml
apiVersion: v1
kind: Service
metadata:
  annotations:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  type: LoadBalancer
  ipFamilyPolicy: SingleStack
  ipFamilies:
    - IPv4
  ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: http
      appProtocol: http
    - name: https
      port: 443
      protocol: TCP
      targetPort: https
      appProtocol: https
  selector:
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/component: controller
---
# Source: ingress-nginx/templates/controller-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: ingress-nginx
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/component: controller
  replicas: 1
  revisionHistoryLimit: 10
  minReadySeconds: 0
  template:
    metadata:
      labels:
        helm.sh/chart: ingress-nginx-4.9.1
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: "1.9.6"
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: controller
    spec:
      dnsPolicy: ClusterFirst
      containers:
        - name: controller
          image: registry.k8s.io/ingress-nginx/controller:v1.9.6@sha256:1405cc613bd95b2c6edd8b2a152510ae91c7e62aea4698500d23b2145960ab9c
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                - /wait-shutdown
          args:
            - /nginx-ingress-controller
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
            - --election-id=ingress-nginx-leader
            - --controller-class=k8s.io/ingress-nginx
            - --ingress-class=nginx
            - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
            - --validating-webhook=:8443
            - --validating-webhook-certificate=/usr/local/certificates/cert
            - --validating-webhook-key=/usr/local/certificates/key
          securityContext:
            runAsNonRoot: true
            runAsUser: 101
            allowPrivilegeEscalation: false
            seccompProfile:
              type: RuntimeDefault
            capabilities:
              drop:
              - ALL
              add:
              - NET_BIND_SERVICE
            readOnlyRootFilesystem: false
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: LD_PRELOAD
              value: /usr/local/lib/libmimalloc.so
          livenessProbe:
            failureThreshold: 5
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
            - name: https
              containerPort: 443
              protocol: TCP
            - name: webhook
              containerPort: 8443
              protocol: TCP
          volumeMounts:
            - name: webhook-cert
              mountPath: /usr/local/certificates/
              readOnly: true
          resources:
            requests:
              cpu: 100m
              memory: 90Mi
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
        - name: webhook-cert
          secret:
            secretName: ingress-nginx-admission
---
# Source: ingress-nginx/templates/controller-ingressclass.yaml
# We don't support namespaced ingressClass yet
# So a ClusterRole and a ClusterRoleBinding is required
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: controller
  name: nginx
spec:
  controller: k8s.io/ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml
# before changing this value, check the required kubernetes version
# https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  annotations:
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
  name: ingress-nginx-admission
webhooks:
  - name: validate.nginx.ingress.kubernetes.io
    matchPolicy: Equivalent
    rules:
      - apiGroups:
          - networking.k8s.io
        apiVersions:
          - v1
        operations:
          - CREATE
          - UPDATE
        resources:
          - ingresses
    failurePolicy: Fail
    sideEffects: None
    admissionReviewVersions:
      - v1
    clientConfig:
      service:
        name: ingress-nginx-controller-admission
        namespace: ingress-nginx
        path: /networking/v1/ingresses
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    "helm.sh/hook": pre-install,pre-upgrade,post-install,post-upgrade
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: ingress-nginx-admission
  annotations:
    "helm.sh/hook": pre-install,pre-upgrade,post-install,post-upgrade
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - admissionregistration.k8s.io
    resources:
      - validatingwebhookconfigurations
    verbs:
      - get
      - update
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: ingress-nginx-admission
  annotations:
    "helm.sh/hook": pre-install,pre-upgrade,post-install,post-upgrade
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    "helm.sh/hook": pre-install,pre-upgrade,post-install,post-upgrade
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
rules:
  - apiGroups:
      - ""
    resources:
      - secrets
    verbs:
      - get
      - create
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: ingress-nginx-admission
  namespace: ingress-nginx
  annotations:
    "helm.sh/hook": pre-install,pre-upgrade,post-install,post-upgrade
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
  annotations:
    "helm.sh/hook": pre-install,pre-upgrade
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
spec:
  template:
    metadata:
      name: ingress-nginx-admission-create
      labels:
        helm.sh/chart: ingress-nginx-4.9.1
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: "1.9.6"
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: create
          image: registry.k8s.io/ingress-nginx/kube-webhook-certgen:v20231226-1a7112e06@sha256:25d6a5f11211cc5c3f9f2bf552b585374af287b4debf693cacbe2da47daa5084
          imagePullPolicy: IfNotPresent
          args:
            - create
            - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
            - --namespace=$(POD_NAMESPACE)
            - --secret-name=ingress-nginx-admission
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          securityContext:
            allowPrivilegeEscalation: false
            capabilities:
              drop:
              - ALL
            readOnlyRootFilesystem: true
            runAsNonRoot: true
            runAsUser: 65532
            seccompProfile:
              type: RuntimeDefault
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      nodeSelector:
        kubernetes.io/os: linux
---
# Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml
apiVersion: batch/v1
kind: Job
metadata:
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
  annotations:
    "helm.sh/hook": post-install,post-upgrade
    "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
  labels:
    helm.sh/chart: ingress-nginx-4.9.1
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/version: "1.9.6"
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/component: admission-webhook
spec:
  template:
    metadata:
      name: ingress-nginx-admission-patch
      labels:
        helm.sh/chart: ingress-nginx-4.9.1
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/version: "1.9.6"
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/component: admission-webhook
    spec:
      containers:
        - name: patch
          image: registry.k8s.io/ingress-nginx/kube-webhook-certgen:v20231226-1a7112e06@sha256:25d6a5f11211cc5c3f9f2bf552b585374af287b4debf693cacbe2da47daa5084
          imagePullPolicy: IfNotPresent
          args:
            - patch
            - --webhook-name=ingress-nginx-admission
            - --namespace=$(POD_NAMESPACE)
            - --patch-mutating=false
            - --secret-name=ingress-nginx-admission
            - --patch-failure-policy=Fail
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          securityContext:
            allowPrivilegeEscalation: false
            capabilities:
              drop:
              - ALL
            readOnlyRootFilesystem: true
            runAsNonRoot: true
            runAsUser: 65532
            seccompProfile:
              type: RuntimeDefault
      restartPolicy: OnFailure
      serviceAccountName: ingress-nginx-admission
      nodeSelector:
        kubernetes.io/os: linux

Conclusion

The "Each-User-Gets-Their-Instance" architecture is a powerful design pattern for scenarios requiring user isolation, scalability, and security. Whether you are running databases, compute environments, or SaaS applications, this architecture gives you isolation at the very least.

Comments

Join the discussion

No comments yet. Be the first to comment.

More from this blog

Untitled Publication

20 posts
